型号：P2.5/P3/P4/P5/P6
应用：

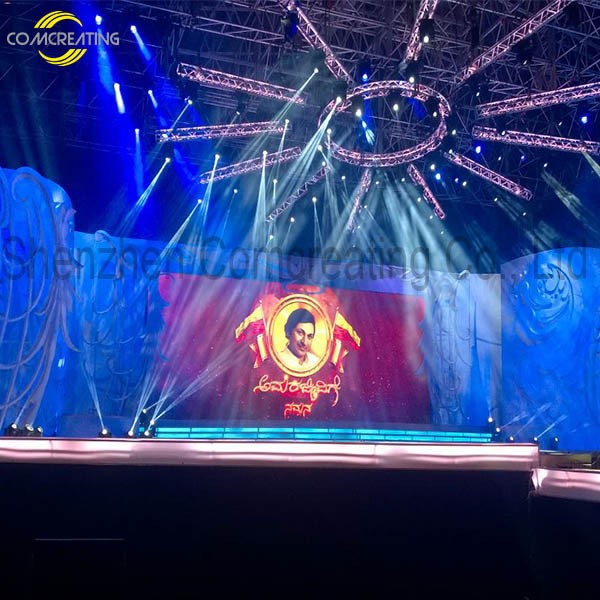

广泛应用于舞台租赁、歌舞活动晚会、各种发布会、展会、体育场、剧场、
礼堂、报告厅、多功能厅、会议室、演绎厅、高档娱乐场所等
产品特点：

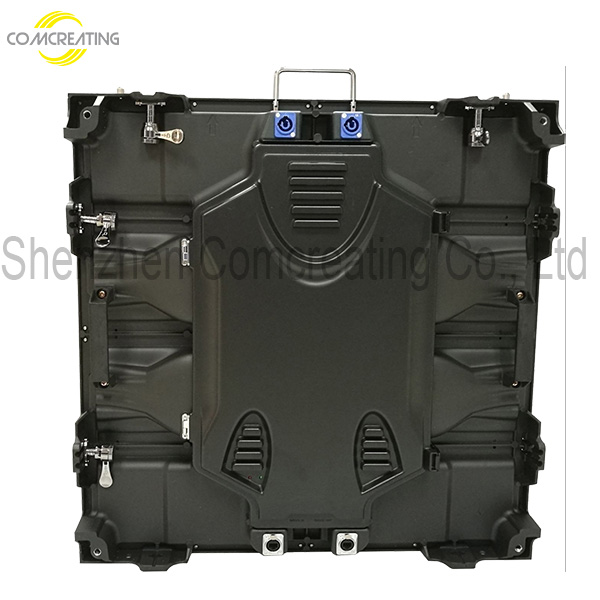

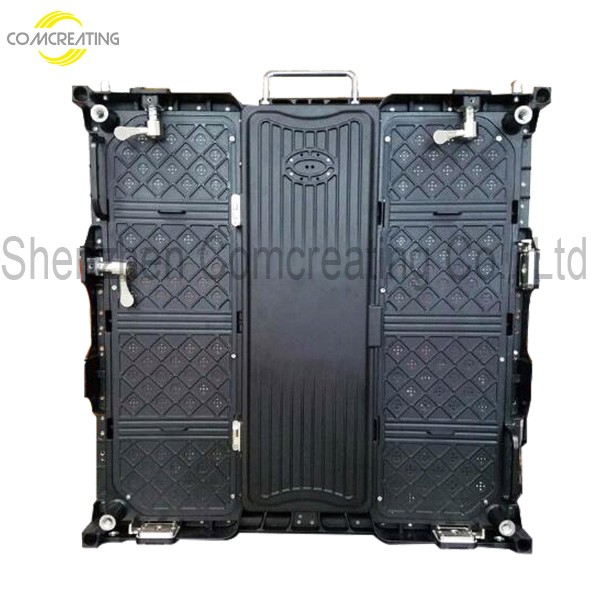

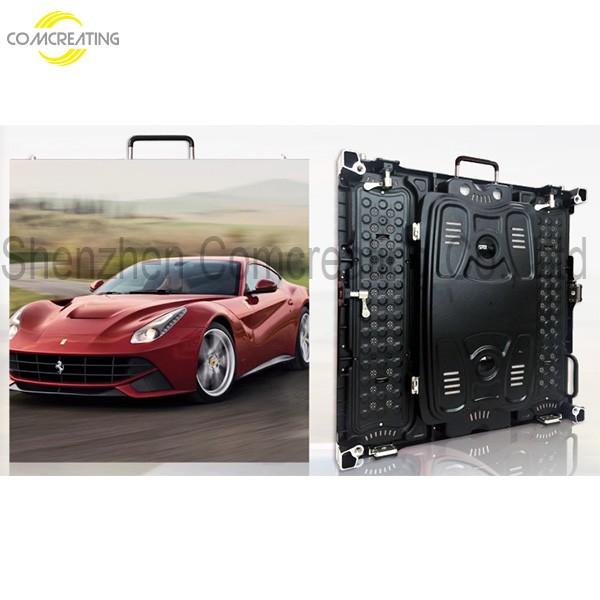

1. 使用压铸铝的生产工艺，箱体强度强，不易变形
2. 超薄超轻吊装设计，方便快速安装拆卸
3. 刷新频率高，画面清晰生动
4. 快速夹具设计，无缝拼接
5. 箱体结构简洁美观，散热好，无风扇，无噪音设计
Items | Indoor P2.5 | Indoor P3 | Indoor P4 | Indoor P5 | Outdoor P2.5 | Outdoor P3 | Outdoor P4 | Outdoor P5 | Outdoor P6 |
Pixel Configuration | 1R1G1B SMD 3-in-1 | ||||||||
Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 2.5mm | 3mm | 4mm | 5mm | 6mm |
Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 |
Module Size(mm) | 320x160 | 192x192 | 256x128 /320x160 | 320x160 | 320x160 | 192x192 | 256x128 /320x160 | 320x160 | 192x192 |
Pixels/Module | 128x64 | 64x64 | 64x32 /80x40 | 64x32 | 128x64 | 64x64 | 64x32 /80x40 | 64x32 | 32x32 |
Cabinet Size(mm) | 640x480 | 576x576 | 512x512 /640x480 | 640x640 | 640x480 | 576x576 | 512x512 /640x480 | 640x640 | 576x576 |
Pixels/Cabinet | 256x192 | 192x192 | 128x128 /160x120 | 128x128 | 256x192 | 192x192 | 128x128 /160x120 | 64x64 | 54x64 |
Cabinet Weight | 8kg | 8kg | 6kg/8kg | 9kg | 8.5kg | 8.5kg | 6.5kg/8.5kg | 9.5kg | 8.5kg |
Brightness(cd/㎡) | ≥800cd/㎡ | ≥5000cd/㎡ | |||||||
Viewing Distance | >2.5m | >3m | >4m | >5m | >2.5m | >3m | >4m | >5m | >6m |
PowerConsumption | Max: 400 / Ave: 150(W/㎡) | Max: 1000 / Ave: 300 (W/㎡) | |||||||
Driver Mode | 1/32 scan | 1/32 scan | 1/16scan | 1/16scan | 1/8scan | 1/8scan | 1/4 scan | 1/4scan | 1/4scan |
IP Rating | IP20 | IP65 | |||||||
Operating Temperature | -30℃~ +50℃ | ||||||||
Viewing Angle | H: 140°; V: 140° | ||||||||
Cabinet Material | Die-casting Aluminum | ||||||||
Refresh Rate | ≥1920HZ adjustable | ||||||||
LED Life | 100,000 hours | ||||||||
Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||||||
Operating Humidity | 10% - 90% | ||||||||
Gray Scale | Red, Green and Blue each 16K | ||||||||
Display Color | 4096 Billion | ||||||||
